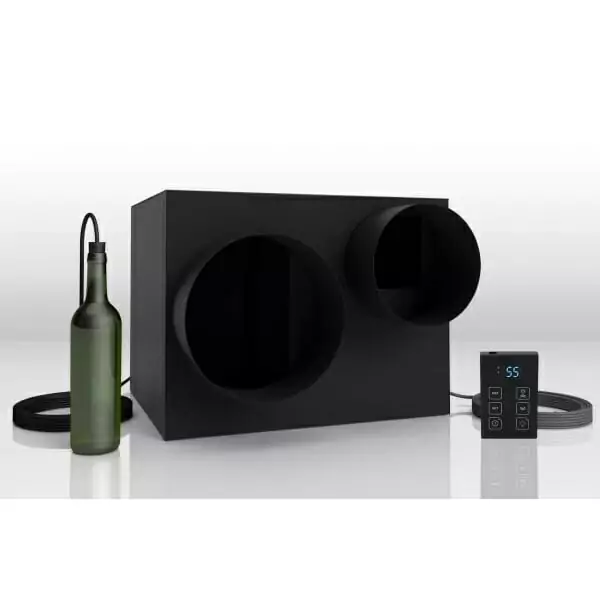

The Fully Ducted Platinum Split is WhisperKool’s newest model to the split line-up. Ducting a Split creates a virtually silent cellar environment and allows for maximum installation options. The system uses our liquid bottle probe for monitoring the actual temperature of the wine to ensure the wine is being kept at 55°F. The evaporator portion may be installed up to 25 duct feet from the cellar.
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Please utilizing our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
- Virtually Silent
- Advanced electronic display
- Liquid bottle probe
- Energy saving mode
- Alarm capabilities
- Flexible installation
- 55°F temperature differential

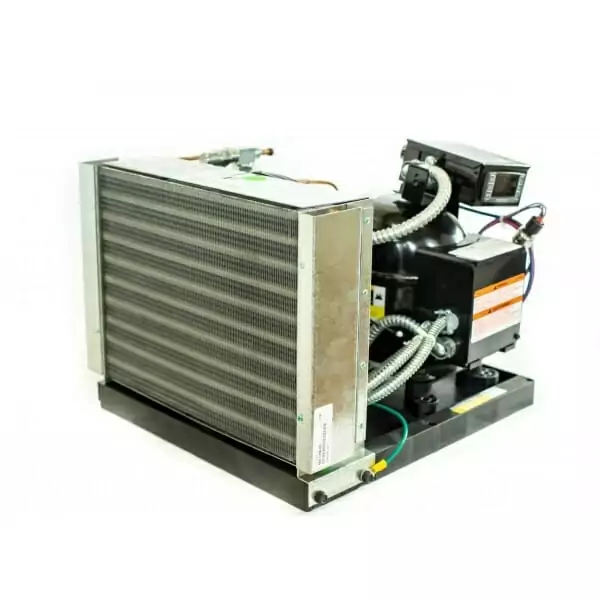

- Condensing unit can be placed outdoors w/optional housing
- Low ambient control
- Pump down system for longer compressor life*
|Model||:||Fully Ducted Platinum Split 8000|
|Cellar Size||:||2000 cu. ft|
|dBA||:||Evaporator: 55 Decibels|
Condenser: 65 Decibels
|Dimensions||:||Evaporator: 23.75″W x 15.5″H x 22.5″D|
Condenser: 12″W x 13.5″H x 18″D
|AMPS (starting/running)||:||Evaporator: 2/1|
|Installation:||:||Evaporator can be installed up 25 duct feet from the cellar; Condenser is installed up to 100 line ft. away|
|Temp. Delta||:||55°F temperature differential|
|Thermostat||:||Digital Control Display|
- The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
A limited 2-year parts and labor
