At WhisperKOOL, we have redesigned the housing for the Platinum series split system evaporators. While the internal components have proven to be reliable and effective, we have designed new housing systems for improved installation and accessibility. The previous design was a little challenging in terms of mounting and accessing the components for installation. It required the removal of the top or side panel. When racking was installed around the unit, it was difficult to gain access for service or maintenance.
Our new design makes the units easier to install by gaining access to system from the front of the unit where we have installed removable grills. This greatly improves the ability to install the system and access it for maintenance. Please note that the dimensions have changed slightly. Review the specification section when planning your install to account for the dimensional change. At WhisperKOOL, we believe in the goal of continuous improvement in everything we do in order to enhance the customer’s experience.
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Please utilizing our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
- Quiet and efficient operation
- Advanced electronic display
- Liquid bottle probe
- Energy saving mode
- Alarm capabilities
- Flexible installation
- 55°F temperature differential
- Condensing unit can be placed outdoors w/optional housing
- Low ambient control
- Pump down system for longer compressor life*
|Model||:||Platinum Split 4000|
|Cellar Size||:||1000 cu. ft|
|dBA||:||Evaporator: 54 Decibels|
Condenser: 65 Decibels
|Dimensions||:||Evaporator: 20.5″W x 15.5″H x 16″D|

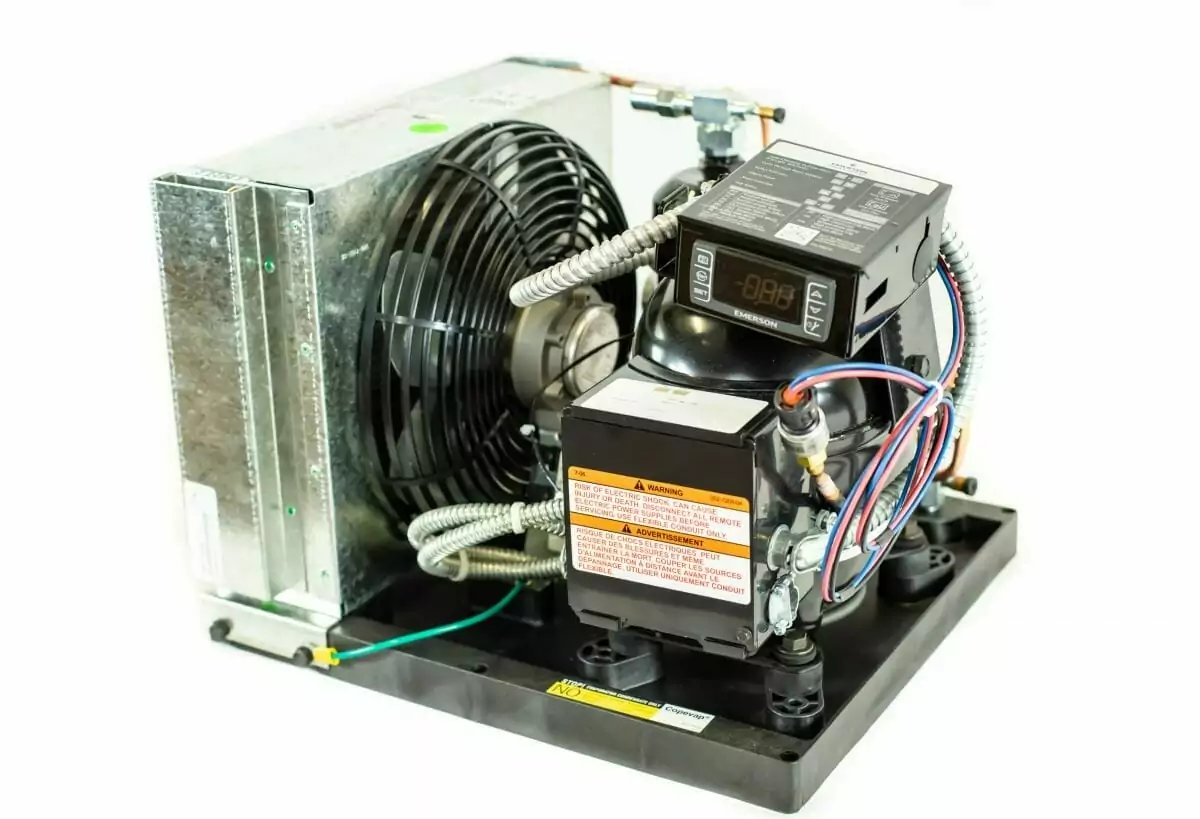

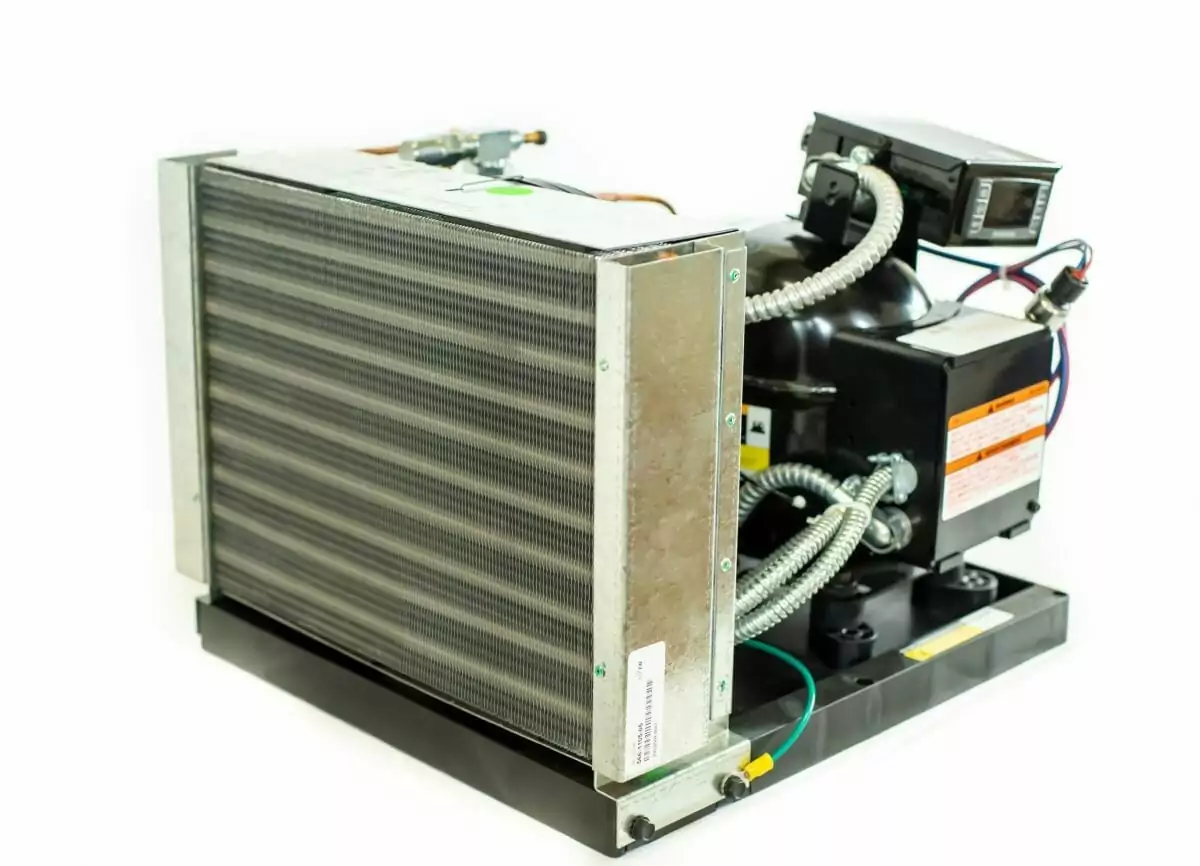

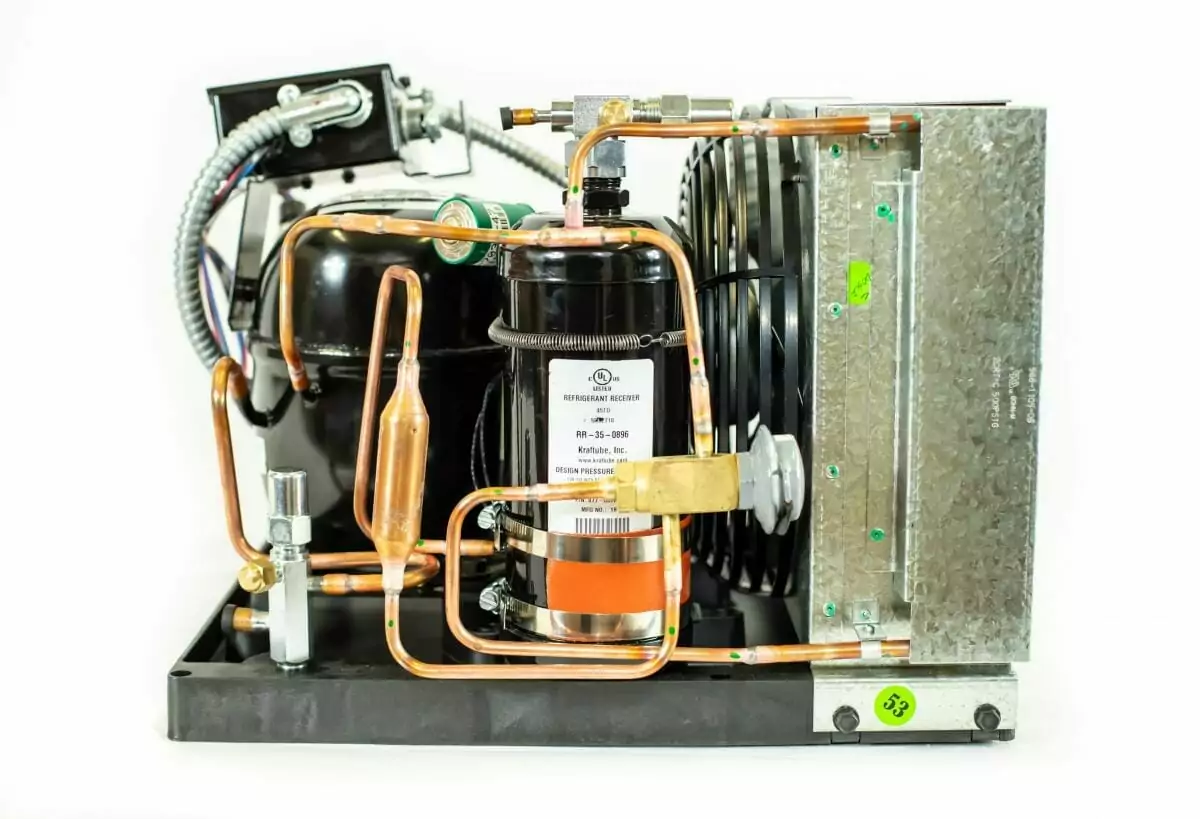

Condenser: 11.5″W x 9.91″H x 16″D
|AMPS (starting/running)||:||Evaporator: 2/1|
|Installation:||:||Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away.|
|Temp. Delta||:||55°F temperature differential|
|Thermostat||:||Digital Control Display|
- The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
A limited 2-year parts and labor
