WhisperKOOL SC PRO Series 2000

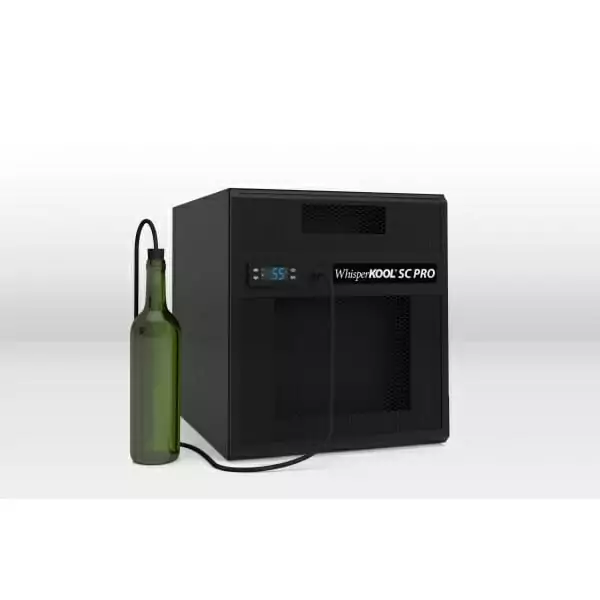

- Liquid-temperature-measuring bottle probe

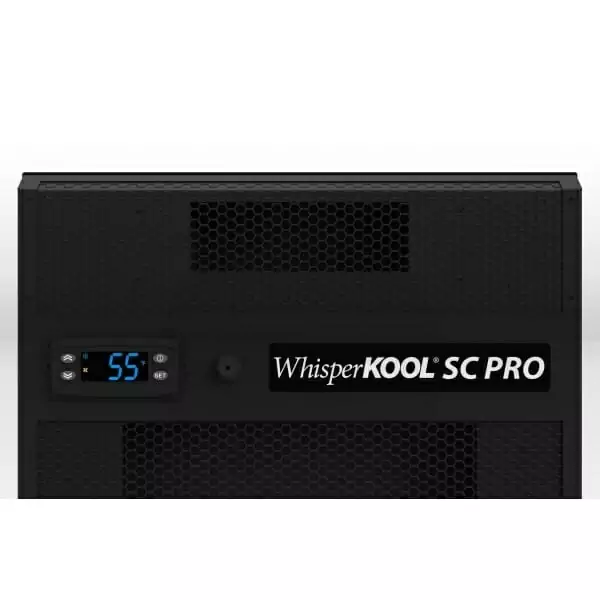

- Advanced digital controller
- Dynamic airflow with quiet operation technology
- Condensate management system
- Coated evaporator coil
- Front or rear power switch
- Single-piece mounting bracket
- Durable powder-coated finish
The Future of KOOL is now with the SC Pro Series. The Pro Series systems incorporate the latest and greatest features
in wine cooling into their design, at an affordable price. Advanced blower fans replace axial fans, which accelerates
the ow of cold air in your cellar at an even distribution. A condensate evaporator has been added to effectively
manage condensate produced by the coil (up to 3 ounces of condensate per hour). The unit also utilizes a smart-metering
TXV valve that efficiently manages the flow of refrigeration through the system to ensure optimal performance.
In order to keep your cellar at 55°F, the condenser intake should not exceed 85°F. This makes interior installation ideal
for SC Pro Series units. Our Extreme Series units are better suited for exterior installations.
The SC Series is our easiest-to-install, self-contained cooling unit. It does not require an HVAC-R technician to install.
The SC PRO Series embodies the latest and greatest system design technologies in an all-new housing design. Developed upon feedback directly from customers and installers, the unit incorporates a variety of high-end components at an affordable price point. By combining powerful airflow with quiet operation technology, the SC PRO is unrivaled when it comes to efficiently cooling small to mid-sized wine cellars.
What separates the original SC Series from the SC PRO Series? The SC PRO comes complete with a new blower fan system that optimizes performance while operating at a significantly lower noise level. It also reintroduces a condensate management system, which effectively evaporates up to 3oz. of water an hour. This management system renders the drain line as an additional safeguard rather than a definite need.
The SC PRO Series is a direct replacement for one of the most well-known cellar cooling units, the XLT. Designed for simple, through-the-wall installation, the unit fits between standard wall studs and a single piece mounting bracket eliminates the need for a support shelf. The SC PRO has a 30°F temperature differential. In order to keep your cellar at 55°F, the condenser intake temperature should not exceed 85°F. This makes interior installation ideal for SC Series units.
- Self-contained units require adequate ventilation on the exhaust side of the unit to dissipate the heat generated during operation.
- The condenser intake temperature should not exceed 85°F.
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
A limited 2-year parts and labor / 5-year compressor warranty
|Model||:||SC PRO Series 2000|
|Cellar Size||:||300 cu. ft|
|Voltage Rating||:||115V (20 amp dedicated circuit required); 230V (subject to availability)|
|Thermostat||:||Advanced digital display, liquid-temperature-measuring bottle probe (retractable cable)|
|Dimensions||:||14.25″ W x 15.75″ H x 17.5″ D|
|Drain Line||:||1/2” ID clear plastic tubing (not provided)|
|Outside Venting||:||Not Recommended|
|Replaces||:||XLT 1600 & SC 2000i|
|Dimensions||22 × 24 × 20 in|
