WhisperKOOL Platinum Mini Split
At WhisperKOOL, we have redesigned the housing for the Platinum series split system evaporators. While the internal components have proven to be reliable and effective, we have designed new housing systems for improved installation and accessibility.

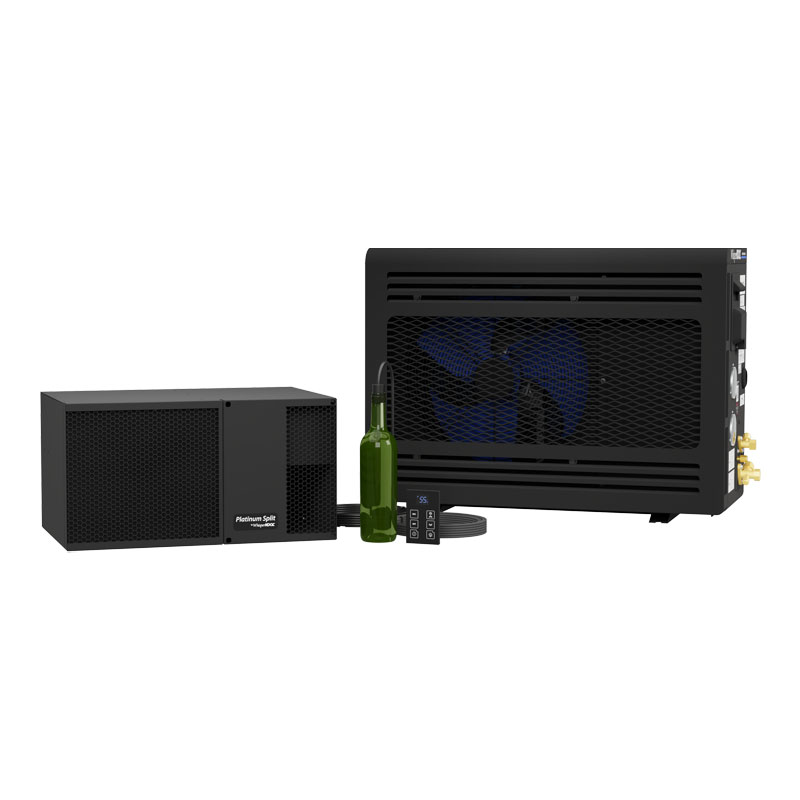

WhisperKOOL has a solution to the most stubborn of small cellar cooling roadblocks. This compact system cools up to 500 cubic feet with the compressor located in a remote location and the evaporator (cold side) mounted in the cellar. Since space in a small cellar is vital, the Platinum Mini-Split offers a compact size paired with powerful efficiency. The unit is equipped with our Platinum Series controller utilizing Advanced System Protection Technology. This features a series of strategically placed monitoring probes, which insure efficient performance and long cooling unit life. The controller is easy to operate and has features such as adjustable humidity control, energy saving modes, quick chill mode and anti-frost function. The Platinum Mini-Split gives anyone the opportunity to have a top-quality wine cellar.
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
Our Platinum Mini Split system has been redesigned for easier care and maintenance. We’ve moved the evaporator coil to a new location and create a unit that can be maintained without removing it from the wall. This improved design will make servicing the system easier and maintain peak operating conditions.
- Ultra-quiet and efficient operation
- Advanced electronic display
- Liquid bottle probe
- Humidity control
- Energy saving mode
- Alarm capabilities
- Flexible installation
- 55°F temperature differential
- Condensing unit can be placed outdoors w/optional housing
- Low ambient control
- Pump down system for longer compressor life*
- New Built-in Humidity Option adds moisture to dry wine cellar environments.
A limited 2-year parts and labor
|Cellar Size||:||500 cu. ft|
|dBA||:||Evaporator: 51 Decibels|
Condenser: 65 Decibels
|Dimensions||:||Evaporator: 20″W x 10.5″H x 13″D|
Condenser: 14″W x 10″H x 10″D
|AMPS (starting/running)||:||Evaporator: 2/1|
|Installation:||:||Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away|
|Temp. Delta||:||55°F temperature differential|
|Thermostat||:||Digital Control Display|
|Outside Venting||:||Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly recommended.|
Active Humidity Features
- Maintains optimal humidity levels when relative humidity level drops.
- Intermittent Mist Injection Technology – No pads or filters which can mold over time.
- Included humidistat displays and monitors humidity levels.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
- The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
|Dimensions||36 × 24 × 30 in|
